Max Feeding:
120-1500mmCapacity:
1-1000tphApplication:River pebble, granite, basalt, shale, limestone, quartz, coal gangue, calcium carbide, carbide slag, bluestone, pebbles, iron ore, etc.
Application range:Widely used in metallurgy, mining, chemical, cement, construction, refractory materials and ceramics industries.
Email: jacker@cfcmining.com

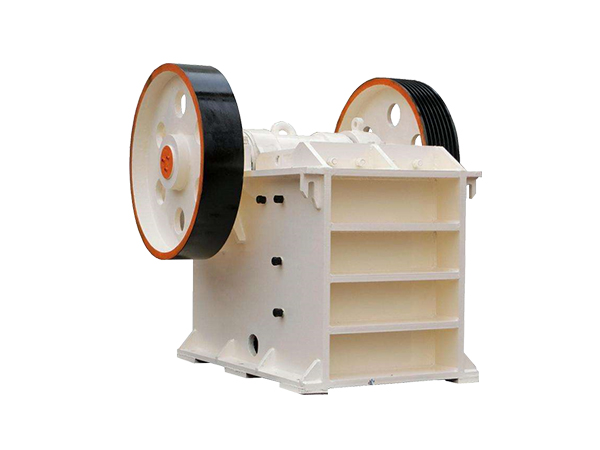

The jaw crusher is mainly used for medium-size crushing of various ores and bulk materials, and is widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries. (The compressive strength of the material t
Type | Feed port size (mm) |
Max Feeding (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Shape(mm) |
PE-150×250 | 150×250 | 125 | 1-3 | 4P 5.5 | 0.8 | 720×660×850 |
PE-200×300 | 200×300 | 180 | 2-6 | 4P 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 3-10 | 4P 11 | 1.5 | 1000×870×990 |
PE-250×400 | 250×400 | 210 | 5-21 | 6P 15 | 2.8 | 1300×1090×1270 |
PE-400×600 | 400×600 | 340 | 16-64 | 6P 30 | 7 | 1730×1730×1630 |
PE-500×750 | 500×750 | 425 | 40-110 | 6P 55 | 12 | 1980×2080×1870 |
PE-600×750 | 600×750 | 500 | 80-240 | 6P 55 | 15.8 | 2070×2000×1920 |
PE-600×900 | 600×900 | 500 | 50-160 | 6P 55 | 17 | 2190×2206×2300 |
PE-750×1060 | 750×1060 | 630 | 110-320 | 8P 110 | 29 | 2660×2430×2800 |
PE-800×1060 | 800×1060 | 640 | 130-330 | 8P 110 | 29.8 | 2710×2430×2800 |
PE-830×1060 | 830×1060 | 650 | 150-336 | 8P 110 | 30.7 | 2740×2430×2800 |
PE-870×1060 | 870×1060 | 660 | 190-336 | 8P 110 | 31.5 | 2810×2430×2800 |
PE-900×1060 | 900×1060 | 685 | 230-390 | 8P 110 | 33 | 2870×2420×2940 |
PE-900×1200 | 900×1200 | 750 | 220-380 | 8P 110 | 52 | 3380×2870×3330 |
PE-1000×1200 | 1000×1200 | 850 | 315-500 | 8P 110 | 55 | 3480×2876×3330 |
PE-1200×1500 | 1200×1500 | 1020 | 400-800 | 6P 160-220 | 100.9 | 4200×3300×3500 |
PE-1500×1800 | 1500×1800 | 1200 | 500-1000 | 8P 280-355 | 139 | 5160×3660×4248 |
PEX-150×750 | 150×750 | 120 | 8-25 | 4P 15 | 3.8 | 1200×1530×1060 |
PEX-250×750 | 250×750 | 210 | 13-35 | 6P 22 | 5.5 | 1380×1750×1540 |
PEX-250×1000 | 250×1000 | 210 | 16-52 | 6P 30 | 7 | 1560×1950×1390 |
PEX-250×1200 | 250×1200 | 210 | 20-61 | 6P 37 | 9.7 | 2140×1660×1500 |
PEX-300×1300 | 300×1300 | 250 | 16-105 | 6P 55 | 15.6 | 2720×1950×1600 |

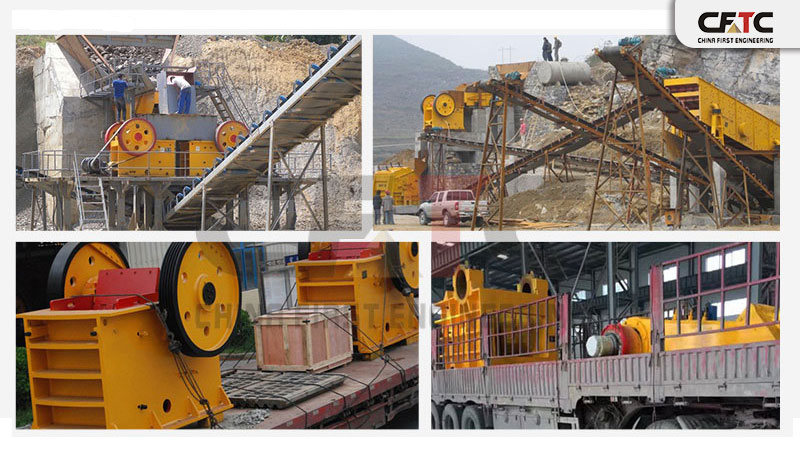

About CFTC PE jaw crusher Price in India: Sold to the region: India Type: Jaw Crusher(PE250*400,PE400*600,PE600*900,PE250*1000) Application: Construction, Mine
PEX Fine jaw crusher is used to crush ore with compressive strength not exceeding 320 MPa, such as granite, iron ore, sandstone, coke, gangue, limestone, quartz stone, raw coal, slag, gypsum and other minerals
reasonable use of jaw crusher: 1. The electric interlocking system of crusher oil pressure shall not be removed under any circumstances.
