Wheeled Mobile Cone Crusher Station

product Introduction

Wheeled Mobile Cone Crusher Station is mainly used in the field of fine crushing, producing sand and stone products with higher hardness and finer particle size.

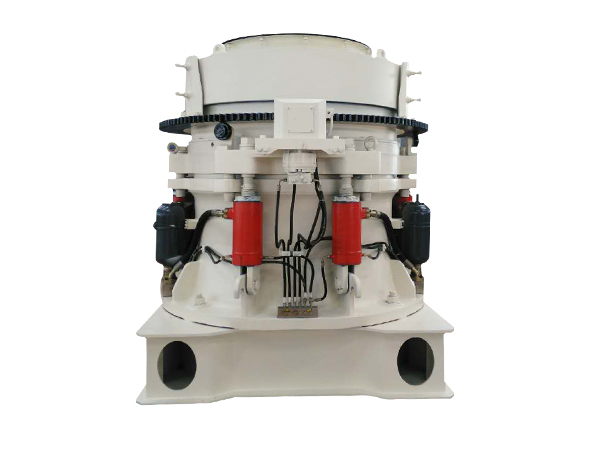

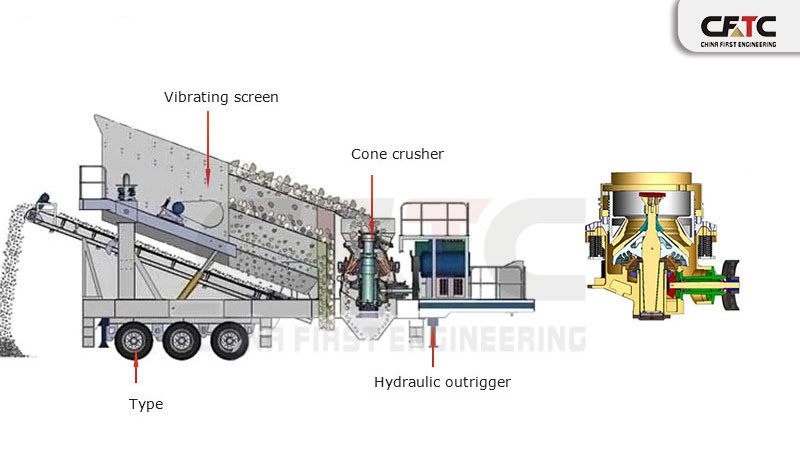

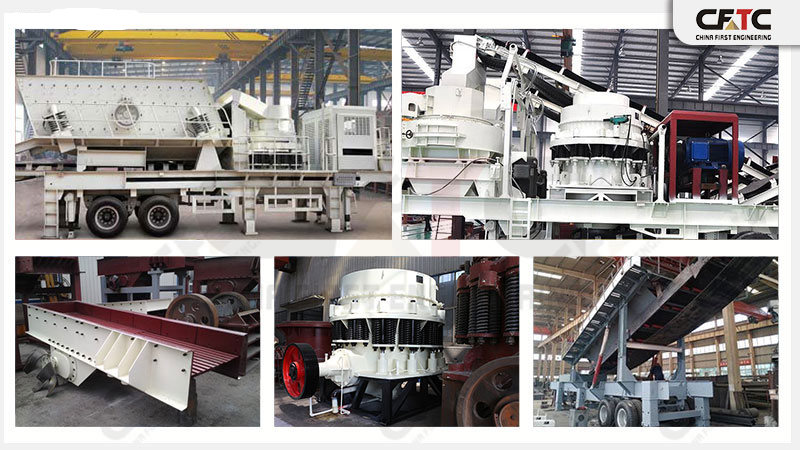

Wheeled Mobile Cone Crusher Station are mainly composed of high-efficiency cone crusher, high-performance vibrating screen, belt conveyor, motor and control box. The equipped cone crusher can be adjusted to different types of crushing chambers according to actual needs, which expands the application field and scope of medium crushing cone mobile crushing station.


Wheeled Mobile Crusher Station is a new type of crushing equipment, which expands the concept field of coarse crusher and fine crushering, it can suppy the customers the best crushing and screening solutions. Considering from the customers' standpoint, efficiently integrates the feeding equipment, crushing equipment, screening equipment, effectively solving the sit constraints of the fixed crushing plants. It not only avoids the site infrastructure, but also expands the material stack space due to the compact equipment layout. Mobile crushing plant has the obvious advantages of crushing while moving, this can provide a whole new operation mode that greatly decreases the operation cost.
Wheeled Mobile Cone Crusher Station Features:

1. The Wheeled Mobile Cone Crusher Station is simple in structure, easy to operate, highly-efficient and energy saving.
2. Modular, intelligent operation design, greatly reducing investment costs and increasing investment income.
3. The Wheeled Mobile Cone Crusher Station can be directly driven to the site, without transportation, and directly reach the granularity of the finished product, especially suitable for small crushing sites, suitable for construction waste disposal, construction waste crushing, and recycling of urban waste.


Working Principle

The material is evenly conveyed into the cone through the feeder, and after the cone crusher is initially crushed, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material, and the finished material is output by the belt conveyor for continuous crushing operation. The conical mobile crushing station can remove the circular vibrating screen according to the actual production needs, and realize the direct crushing of the material directly. It is convenient and flexible to operate with other crushing equipment.

Parameter
