Tracked mobile crusher

product Introduction

Tracked mobile crusher is a kind of high efficiency crushing equipment. It is a kind of mining machinery equipment that crushes materials in different stages and sieves them according to certain discharge specifications.

Tracked Mobile Crusher, as a kind of crushing and screening equipment, is also called Crawler-type Hydraulic Drive Crushing Station. Not only does it adopts the hydraulic system driving crawler to run smoothly, but also can adapt to various complex operating conditions.

Working Principle

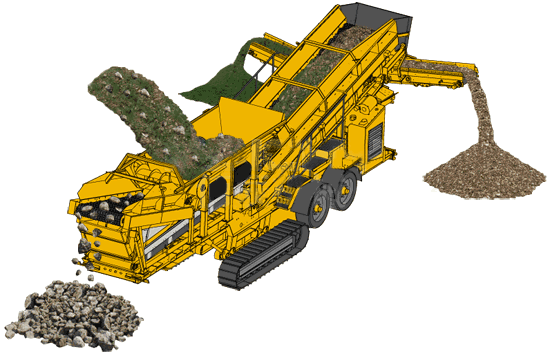

The material enters the crushing part of the machine from the feeding hopper, and is rapidly accelerated in the impeller of the crushing equipment. Its acceleration can reach hundreds of times of gravity acceleration, after multiple chance impact, friction and grinding and crushing. The broken material is discharged from the lower discharge opening. As the screening process is carried out, the materials that meet the requirements are finished. Of course, the entire processing process also requires the assistance of feeding.

Parameter

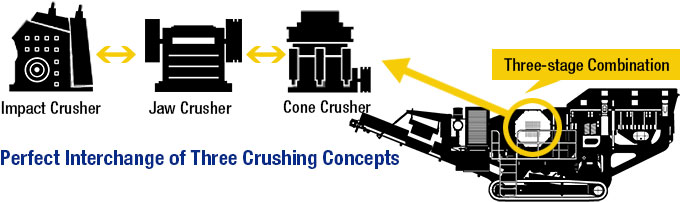

The tracked mobile crusher consists of 25 basic modules. Each module has a wide range of options and can be tailored to the specific needs of customers. According to different configuration methods, it can be divided into E-crawler mobile crusher, counter-crushing crawler mobile crusher, cone-breaking crawler mobile crusher and screening crawler mobile crusher.







tracked mobile jaw crusher:


Type	CFTC96	CFTC106
Silo volume	3m³	5m³
feeding machine	GZDT9538	GZDT1145
Jaw crusher	CJ96	CJ106
belt	LTB800×10m	LTB1000×10m
track	500×3.8m	500×3.8m
Walking speed	0-20m/min	0-20m/min
Gradeability	±20°	±20°
power	96kw	106kw
Total power	112.9kw	141.4kw
shape	13m×2.8m×3.5m	14.4m×3m×3.6m
weight	38t	50t
capacity	300tph	450tph

tracked mobile impact crusher:


type	CFTCI1110	CFTCI1213
Silo volume	3m³	4m³
Feed machine	GZDT9538	GZDT1145
Impact crusher	CI1110	CI1213
belt	LTB800×10m	LTB1000×10m
track	500m×3.8m	500m×4.2m
Walking speed	0-20m/min	0-20m/min
Gradeability	±20°	±20°
power	196.8kw	250.8kw
shape	17m×3.5m×4m	18.5m×3.6m×4.1m
weight	40t	52t
capacity	100-250tph	160-400tph

tracked mobile cone crusher:


type	TSC160	TSC250	HP300
Silo volume	3m³	3m³	3m³
belt	LTB1000×6m	LTB1000×6m	LTB1200×6m
Cone crusher	SC160	SC250	HP300
belt	LTB800×10m	LTB1000×10m	LTB1000×10m
Feed machine	HX1230	HX1430	HX1430
trak	500×3.8m	500×4.2m	500×4.2m
speed	0-20m/min	0-20m/min	0-20m/min
Gradeability	±20°	±20°	±20°
power	201kw	298.5kw	268.5kw
shape	17m×4m×5m	19m×4.3m×5.5m	19m×4.3m×5.5m
weight	40t	53t	52t
capacity	100-250tph	180-450tph	160-400tph
