Vibrating Feeder

product Introduction

Vibrating Feeder is widely used in the combined equipment of crushing and screening in mineral processing, building materials, silicate, and chemical industry.

Vibrating Feeder Features:

1，The vibrating feeder with adjustable accessories, Change and control flow at any time, easy and stable adjustment
2，The design of a closed body to prevent dust pollution effectively, environmentally sustainable
3，Simple structure, uniform feeding, good continuous performance, realizing continuous feeding
4，Good adjustment performance, stable vibration, which ensures smooth operation.

Working Principle

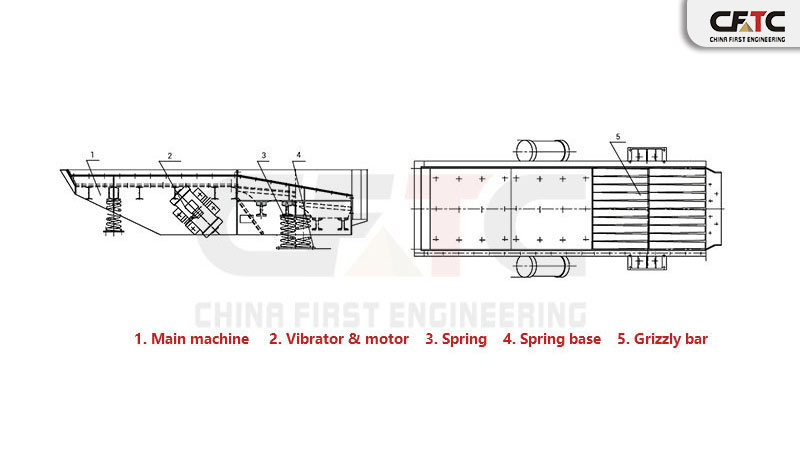

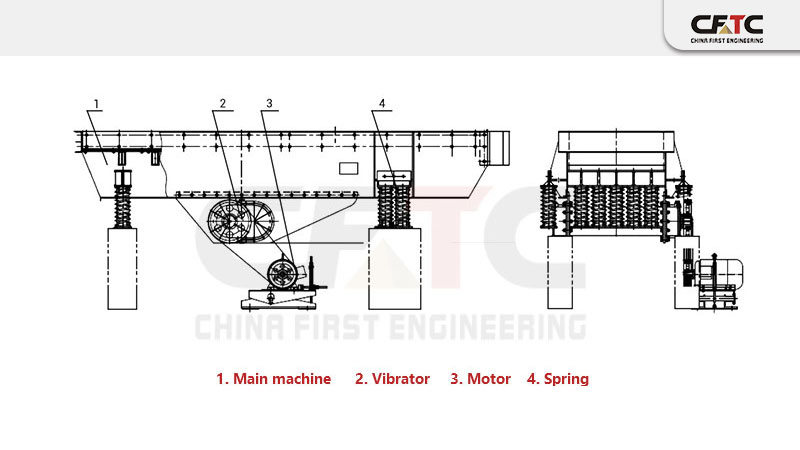

ZSW linear vibrting feeder consists of the groove, exciter, spring support base, transmission device and so on. The exciter is the vibration source. The exciter is made up of two eccentric shafts (one is the driving shaft, the other is driven shaft) and a gear pair. The motor drives the driving shaft through the V-belt, and the driving shaft drives the driven shaft. The driving shaft and driven shaft rotate conversely at the same time to vibrate the groove. The materials in the groove move forward to achieve the result of feeding. GZD Series vibrating feeder adopts double vibrating motor to vibrate the groove to feed materials to the crusher.

Parameter
