Max Feeding:
<250mm.Capacity:

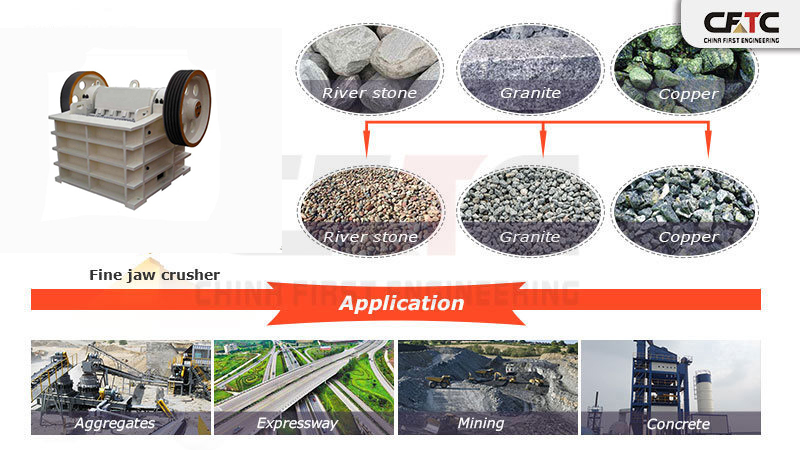

8-105tphApplication：River pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, iron ore, coal gangue, pebbles, basalt, etc..
Application range:Widely used in metallurgy, mining, chemical, cement, construction, refractory materials and ceramics industries.
Email: jacker@cfcmining.com

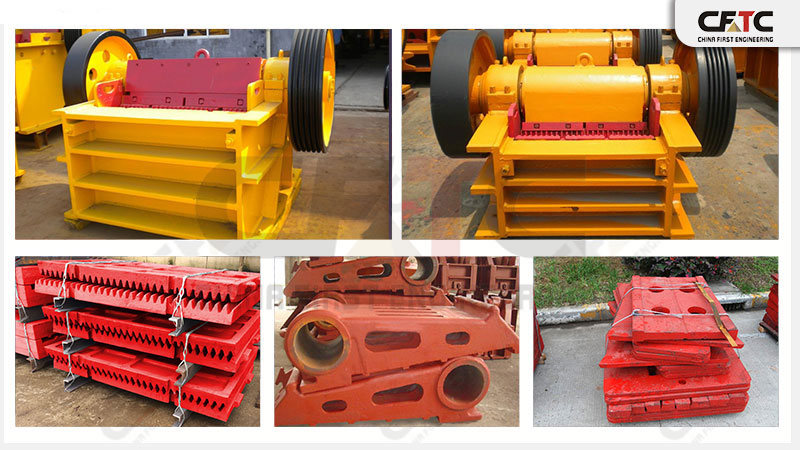

Jaw crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as ore quartz, granite, limestone, slags, construction materials
Fine Type PEX Jaw Crusher Working principle:
The machine's leather belt and wheel are driven by the electric motor, then movable jaw begins to move up and down by the eccentric shaft, when the movable jaw moves from top to bottom, the angle between fixed jaw and movable jaw becomes smaller, the movable jaw plate deviates from the fixed jaw plate under the function of dragging rod and spring, at this moment the crushed materials are discharged from the bottom outlet of the crushing cavity.
| type | feeding size (mm） |
max-feeding size (mm) |
Drainage Entire range (mm) |
capacity (t/h) |
speed (r/min) |
power (kw) |
weight (t) |
shape （L×W×H） (mm) |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
