Max Feeding:
<210mmCapacity:
16-52 tphApplication：River pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, iron ore, coal gangue, pebbles, basalt, etc..
Application range:Widely used in metallurgy, mining, chemical, cement, construction, refractory materials and ceramics industries.
Email: jacker@cfcmining.com
PEX series jaw crusher is ideally suitable for primary and secondary crushing.
PEX series jaw crusher used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and our jaw crushers have the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance. The crushing strength of the jaw crusher materials is up to 350 Mpa.
jaw crusher pe 250 x 1000 work principle:

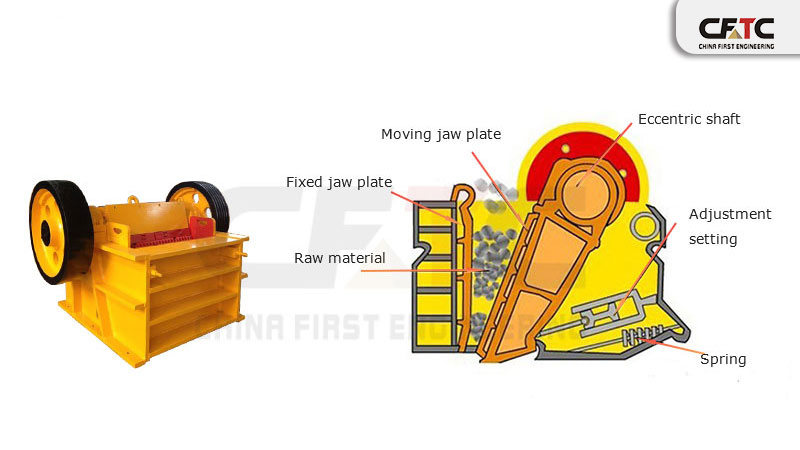

The working principle of jaw crusher is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, jaw crusher is easy to maintain and repair. These features promote its popularity to a great extant.
| type | feeding size (mm） |
max-feeding size (mm) |
Drainage Entire range (mm) |
capacity (t/h) |
speed (r/min) |
power (kw) |
weight (t) |
shape （L×W×H） (mm) |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
