Max Feeding:
≤10mmCapacity:
≤350tph.Application:cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station, etc.
Application range:Widely used in metallurgy, mining, chemical, cement, construction, refractory materials and ceramics industries.
Email: jacker@cfcmining.com

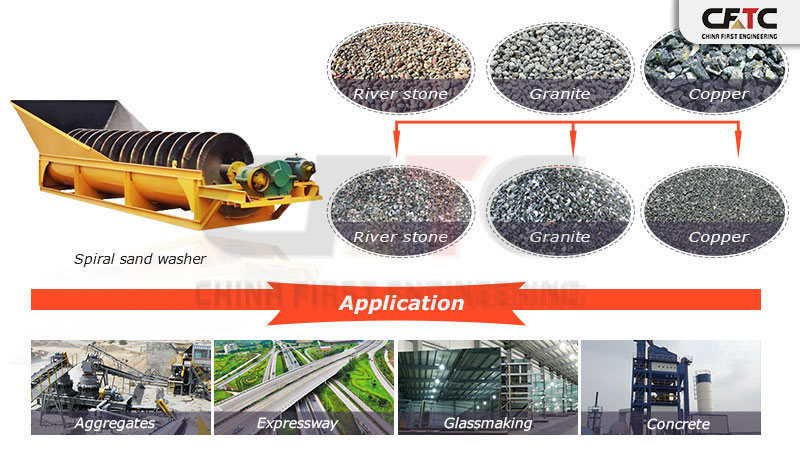

Spiral sand washer machine is used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station, etc.

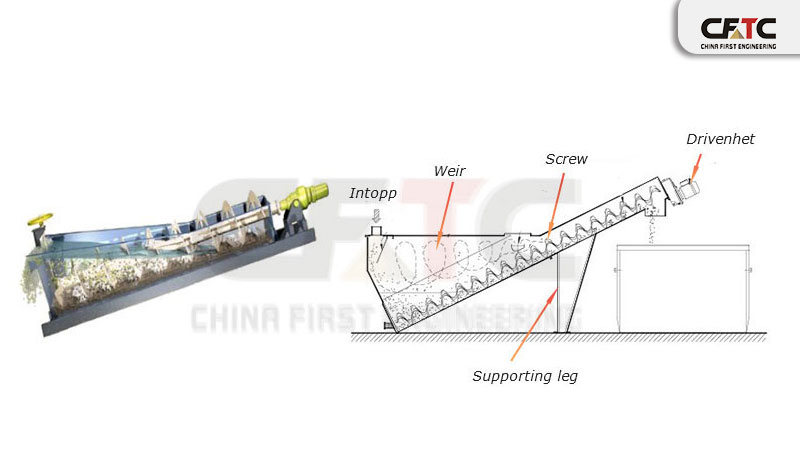

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
Model | Quantity of spiral (mm) | Diameter of spiral (mm) | Length of tank (mm) | Feeding size (mm) | Rotating speed of spiral (r/min) | Power(kW) | Water consumption(kg/t) | Capacity(tph) |
LXS-920 | 1 | 920 | 7585 | ≤10 | 21 | 11 | 10-80 | 100 |
2LXS-920 | 2 | 920 | 7585 | ≤10 | 21 | 11X2 | 20-160 | 200 |
LXS1120 | 1 | 1120 | 9750 | ≤10 | 17 | 18.5 | 20-150 | 175 |
2LXS1120 | 2 | 1120 | 9750 | ≤10 | 17 | 18.5X2 | 40-300 | 350 |
