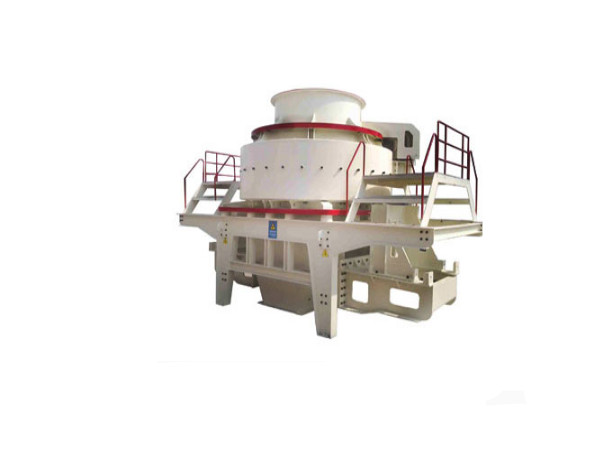

Professional VSI Sand Making Machine with Ce Approval

product Introduction

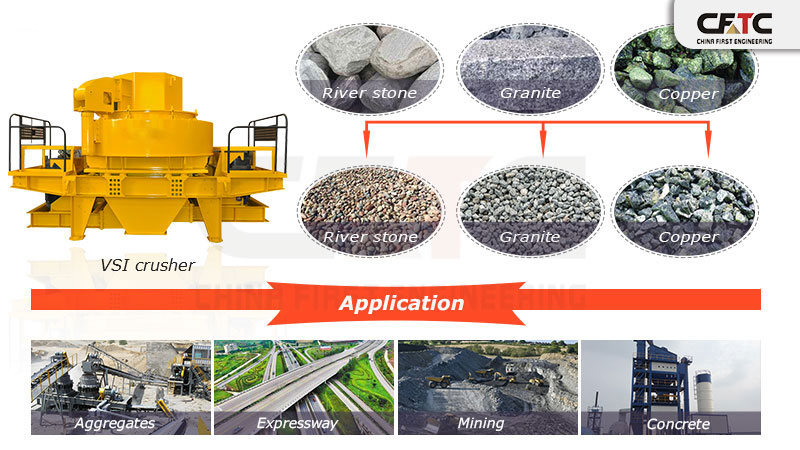

VSI crusher machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, slags, artificial sand production. Can be used in Building aggregate, highway, asphalt concrete and cement aggregate production.

VSI sand making machine is high performance sand making equipment with foreign technology. It is the perfect combination of unique design of rotor structure, wear-resisting material process, crushing speed optimization and hydraulic design. It Is a model of professional fine grinding technology and machinery manufacturing, and also is a fully reflection of the new technology and new process.

This machine is designed to make high quality sand for highway, high-speed railway, high-rise buildings, municipal engineering, hydropower dam construction and aggregate concrete mixing station. Its the best choice in the field of artificial sand and stone plastic equipment.

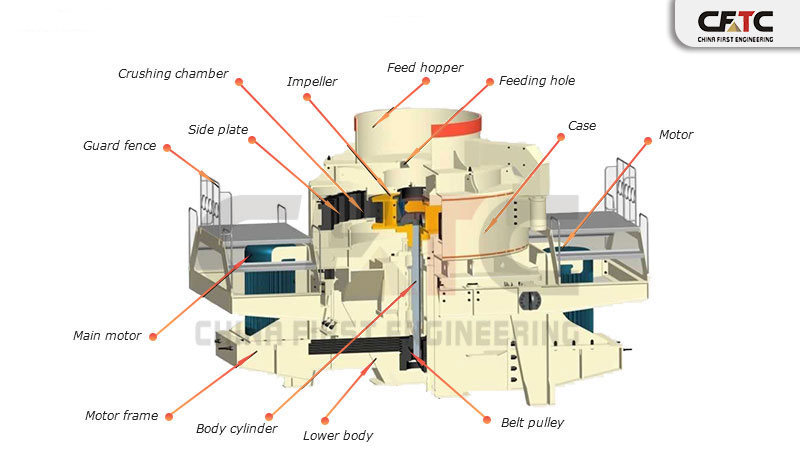

VSI sand making machine Structure :
 Performance characteristics of our products:
1.     The crushing cavity internal items can be changed or repaired easily and fast,because of adopting hydraulic drive cover device.
2.     With the unique feeding crusher structure, it is convenient to realize the"stone crushing stone" and "stone crushing metal", can crush and shaping stones.
3.     With the unique dust proof sealing system, completely avoid the external dust into the lubricating parts.
4.     High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure.
5.     The best design of crushing cavity, prolong the service time of wearing parts and reduce the cost.

Working Principle

Raw material falls down into feed hopper, and then the material enters impeller through central entrance hole. It is accelerated in high-speed impeller, and then it is thrown out at the speed of 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards though outlet.

Parameter
