product Introduction

The ball mill can process barite, coal slime, potassium feldspar, tungsten carbide, copper ore, slag, hematite, white ash, gold ore, aluminum powder, high alumina porcelain, iron powder, fluorite ore, aluminum powder paste, Steel slag, quartz sand, sulfur

What Is A Ball Mill?

Ball mill is the key equipment for grinding the material after being broken. Ball mills are widely used in cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings, and glass ceramics. The ball mill is suitable for grinding various ores and other materials and is widely used in mineral processing, building materials and chemical industries.

Classification Of Ball Mill

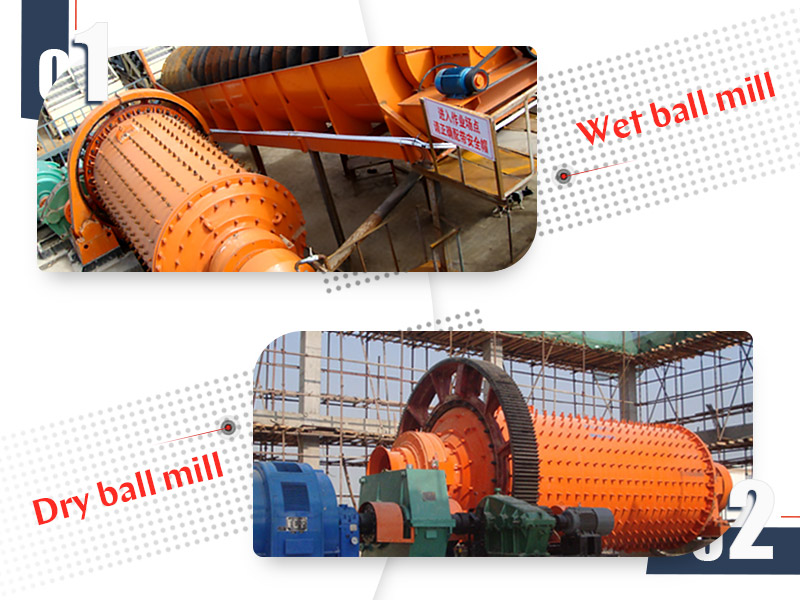

The ball mills can be divided into dry ball mill and wet ball mill according to the process conditions.According to different materials will choose different grinding sub. The grinding sub can be roughly divided into metal and non - metal categories. The grinding sub of ball mill is steel ball, the grinding sub of rod mill (MBS type rod mill) is a steel bar, and the grinding sub of ceramic ball mill is ceramics.

Wet ball mill: Grind the material into a certain concentration of pulp, the general concentration is 60 ~ 70%.

Dry ball mill: Grind the material into the desired mineral powder. The thickness of the ore powder should be based on the grading of the grinding body.

Ball Mill Features:

Energy Saving and Less Power Consumption: The matching of the drive and the grinding media can greatly lower the power consumption.
The Flexible Design of the Discharging Port: The customers can decide whether the iron removing the device is required or not according to their demands.
The Bigger Feeding Size: The reasonable design of the feeding port can increase the feeding output.
Taking the Closed System to Decrease the Dust: Closed system, negative pressure conveying, small dust.

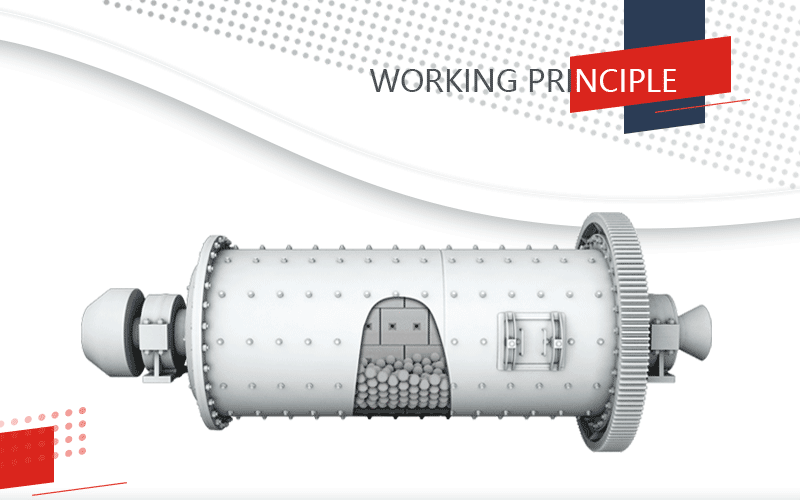

Working Principle

The material is fed into the mill by a drum feeder through a spiral cylinder with a hollow shaft. The grinding medium is installed in the barrel body. When the barrel body rotates, the grinding medium is attached to the wall liner surface of the barrel body due to the inertial centrifugal force. After being rotated together with the barrel body and brought to a certain height, the materials in the barrel body are broken by gravity.

BALL MILL WORKING PRINCIPLE

In addition to the cyclic movement of ascending and falling, the grinding medium also causes sliding and rolling in the rotating cylinder body, causing grinding action between the grinding medium, the lining plate and the material to grind the material.

Parameter

Model	Shell rotation speed （r/min）	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	As per process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	As per process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	As per process conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525
