YGM High Strength Grinding Mill

product Introduction

YGM High strength grinding mill machine is suitable for the processing of more than 280 kinds of materials. Such as barite, limestone, ceramics, slag, which Mohs hardness is no more than 9.3, humidity is less than 6%.

YGM High strength grinding mill machine suitable for non-flammable and explosive mines, metallurgy, chemical industry, building materials, and other industries.


YGM High strength grinding mill Features:

1. Uniform fineness of the finished powder, 99% screening rate, which is difficult for other milling equipment.
2. The transmission device adopts sealed gearbox and pulley, which makes the transmission smooth and the operation reliable
3. The important parts are made of high-quality steel, and the wear-resistant parts are made of high-performance wear-resistant materials.
4. The high-strength grinding adopts a three-dimensional structure, which has a small area and a strong set of integrity. It is a self-contained production system from block to finished powder.

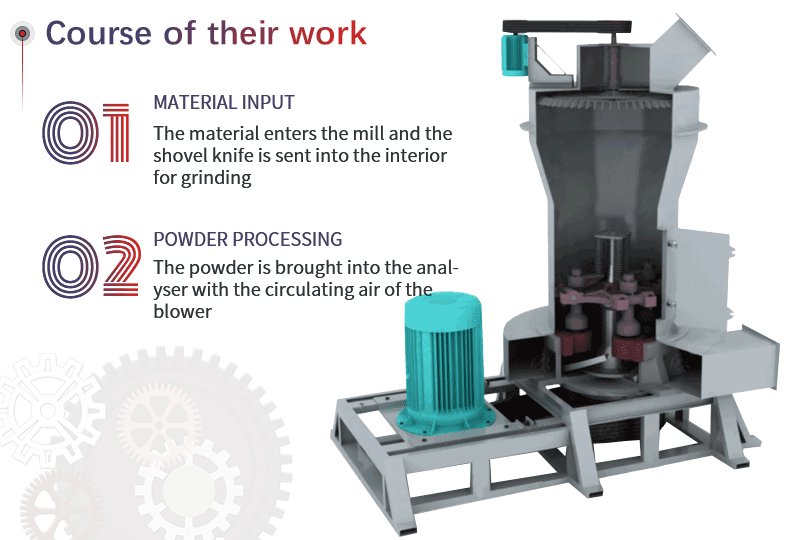

Working Principle

After starting work, the grinding roller rotates around the main shaft, and under the action of high-pressure spring and centrifugal force, it rolls close to the grinding ring. When the grinding material enters the grinding chamber, it is scooped up by a shovel knife and sent to the grinding roller and ring for rolling. After rolling, the powder is brought into the analytical machine with the circulating wind of the blower. The Qualified fine powder flows into the cyclone powder collector with the air, which is the finished product, large granular materials fall back to be reground.

Parameter
